HADRON CNC Pressure FANG PLATE V2 - Orange

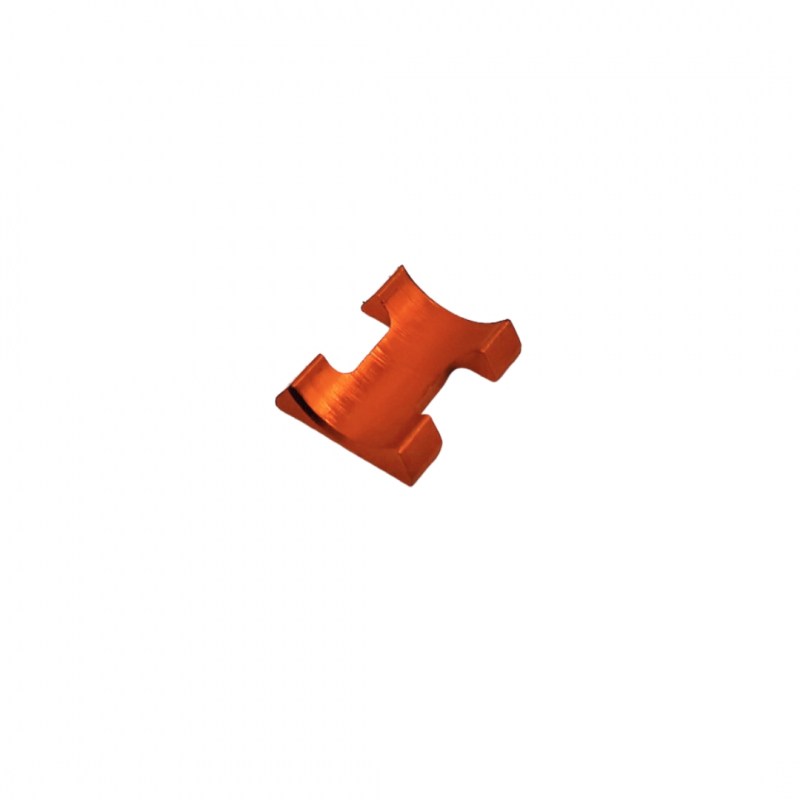

CNC FANG PLATE V2 Pressure Nub by Hadron Airsoft Designs in orange.

Enhanced shape for modern hop-up buckings like Flamingo, X-Range, or 4UAD.

Full-concave profile ensures precise contact pressure.

CNC-machined aluminum for heavy sniper BBs (up to 0.43 g).

Ideal for AAP-01 GBB, TM G-series GBB (not for WE), and TM Mk23 GNB (also ASG, STTI).

Další varianty

  • Green
    Out stock
  • Orange
    On stock

7,44 € tax incl.

Availability: In Stock

> 5 Items

Fangv2

: Hadron Airsoft Designs

By buying this product you can collect up to 1 point.
View loyalty points rules.


FANG PLATE V2 Pressure Nub

FANG PLATE V2 is an upgraded pressure segment under the hop-up arm, specifically designed for Tokyo Marui G-series (not compatible with WE R-series), Action Army AAP-01, and Mk23 (ASG, STTI, Tokyo Marui). Thanks to its precision CNC-machined aluminum construction and concave bottom profile, this part applies consistent pressure on the hop-up bucking across the entire contact window, improving shooting accuracy and consistency. The aluminum version is also suitable for heavier BBs up to 0.43g. The segment is self-centering and features a orange color for easy identification. Best paired with Flamingo or Maple Leaf MrHop buckings and un-bridged barrels like the ML Crazy Jet.

Key Features

  • CNC-machined aluminum: High precision and durability
  • Self-centering design: Stable positioning without side shift
  • Concave profile: Even pressure across the full length

Variants of HADRON Pressure Segments

  • FANG PLATE – Designed for AAP-01 and TM G-series, I-shaped with curvature across length and width. Available in nylon (for light BBs) and CNC V2 (for heavier BBs).
  • H-PLATE – Also for AAP-01 and TM G-series, I-shaped with center-only curvature for improved BB centering. Available in nylon (light BBs) and CNC V2 (heavier BBs).
  • H-ARM – Special pressure arm for MK23 and SSX23 GNB, must be used with HADRON M-TDC frame and LOGIC plates. Center curvature helps BB centering. Suitable even for heavy sniper BBs up to 0.49g.

Technical Specifications

  • Material: CNC-machined aluminum
  • Recommended BB weight: 0.32–0.43 g (depends on arm and hop-up chamber quality)
  • Compatible pistols: Action Army AAP-01 / AAP-01C, TM G-series, MK23 (TM, ASG, and STTI)
  • Designed for: Un-bridged inner barrels
  • Recommended buckings: Flamingo Gen3 GBB, Maple Leaf MrHop GBB, 4UAD Quantum Friction GBB
  • Not compatible with: WE R-series (G-series replicas) due to small hop-up chamber window

Package Contents

  • CNC FANG PLATE V2 pressure nub

Note for AAP-01 Users

When using the Flamingo bucking in AAP-01, you might need to file the inner surface of the hop-up arm or shape the internal faces of the pressure segment slightly, due to varying tolerances in AAP-01 stock chambers. In most cases, the pressure segment slides in with a light push, but always make sure it sits evenly before use.

ColorOrange
