ASG ULTIMATE CNC Gear Set - Ratio 24.5:1
CNC Gear Set by ASG ULTIMATE with 24.5:1 gear ratio.
Designed for extreme high-torque AEG upgrade builds.
Precision CNC-machined from steel for maximum strength and accuracy.
Perfectly shaped gear teeth.
Optimized hardness and smooth power transfer.

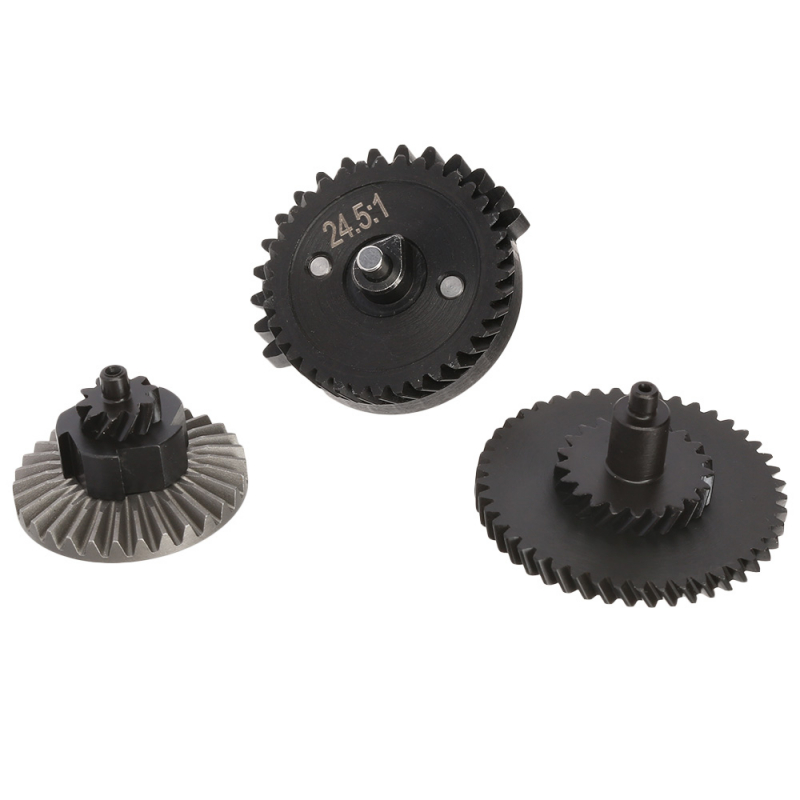

Complete 3-gear set (bevel, spur and sector gear).
3 mm axle shafts.
Další varianty
On stock
On stock
On stock
On stock
On stock
On stock
By buying this product you can collect up to 13 points.
View loyalty points rules.
CNC Gear Set by ASG ULTIMATE
The ULTIMATE CNC gear set is engineered for heavy-duty airsoft builds that require long-lasting durability and smooth operation. Each gear is manufactured using high-precision CNC machining and differential heat-treated based on the role of each gear in the drivetrain, ensuring optimal hardness and lifespan. The set is compatible with standard 3mm bushings or bearings.
Key Features
- Fully CNC-machined construction – maximum precision and zero backlash.
- Differential heat treatment – tailored hardness for each gear’s function.
- Smooth operation – ensures consistent performance under stress.
- Complete set – includes bevel, spur, and sector gear.
Gear Ratios and Spring Compatibility
| Gear Ratio | Type | Recommended Spring |
|---|---|---|
| 26.5:1 | Extreme High-Torque | M170 – M210 |
| 24.5:1 | Super High-Torque | M130 – M180 |
| 19.5:1 | High-Torque | M120 – M150 |
| 18.5:1 | High-Torque | M110 – M145 |
| 16.5:1 | Torque | M110 – M135 |
| 13.5:1 | Speed | M90 – M125 |
| 12.5:1 | High Speed | M80 – M115 |
Technical Specifications
- Type: AEG CNC Steel Gear Set
- Gear Ratio: 24.5:1
- Material: Steel (differentially hardened)
- Weight: 85 g
Package Contents
- ULTIMATE CNC Gear set
- Plastic box with foam insert
