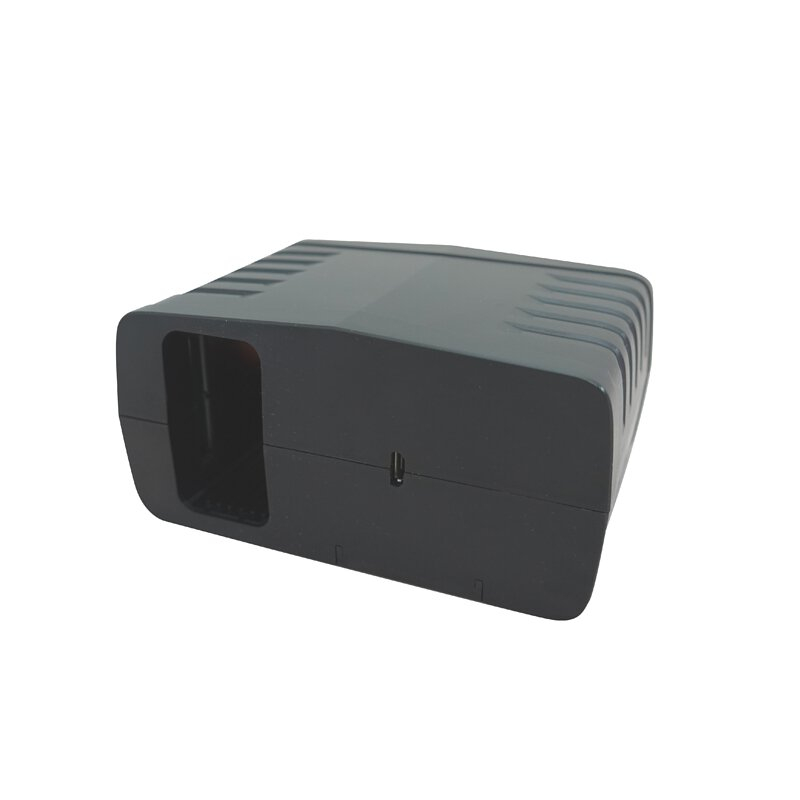

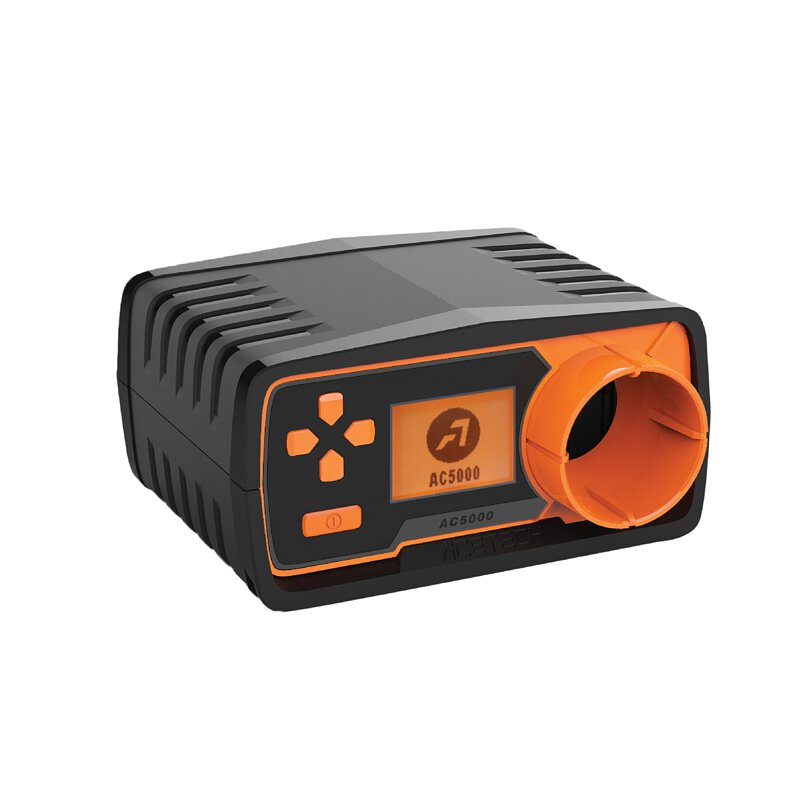

AceTech AC5000 Chronograph

Muzzle Velocity Meter / Chrono AC5000 by AceTech

Do you want to know exactly the muzzle velocity and energy of your gun? To verify the effect of a newly installed upgrade part? Or simply to be sure you won’t be sent home from a game due to an overpowered gun? Then you need your own chrono. The AC5000 is an advanced chronograph for measuring muzzle velocity, energy, and rate of fire. It uses patented LED lenses and IR sensors for maximum accuracy. With its 24 mm diameter tube, it is suitable even for larger barrels of airguns and airsoft guns (ammo calibers 4.5 mm, 6 mm, 9 mm, and 18 mm).
The 128×64 color LCD display shows velocity, RoF, Joules, BB weight, and more. It includes memory for the last 25 shots and auto shut-off during inactivity or low battery. Power is supplied via 2× AA batteries or a Micro USB cable (not included). This allows easy powering via a phone charger or a power bank. The device can also be mounted on a tripod using the standard 1/4-20 UNC thread. The plastic body is durable and compact, ideal for both range use and field play.

Tips for Accurate Measurement

• Always measure with quality BBs of the same weight (commonly 0.20 g).
• Always wear protective goggles (including people nearby).
• Place the chrono on a stable surface and fire from a short distance straight through the measuring tube.
• Ensure a safe zone behind the chrono free of people, animals, and valuables.
• Take multiple measurements for accuracy (at least 3 shots).
• Clean and maintain sensors more frequently after using gas-powered guns.

Key Features

• Accurate velocity and RoF measurement:
  Suitable for airsoft, paintball, and airguns.


• 24 mm measuring tube:
  Supports a wide range of calibers, including larger barrels.


• Dual power supply:
  2× AA batteries or Micro USB (mains/power bank).


• Measurement memory:
  Stores the last 25 shots (memory clears after shut-off).


• LCD display:
  Backlit and clear.


• Compact and lightweight:
  Perfect for the field and shooting range.

Technical Specifications

• Velocity range: 30 – 400 m/s (90 – 1200 FPS)
• Rate of fire range: 100 – 5000 rounds/min
• Measuring tube diameter: 24 mm
• Power supply: 2× AA alkaline batteries or Micro USB
• Display: LCD, 128 × 64 resolution, backlit
• Shut-off: Automatic during inactivity or low battery
• Supported calibers: 4.5 mm, 6 mm, 9 mm, and 18 mm
• Mounting: 1/4-20 UNC tripod thread
• Dimensions: 117 × 97 × 59 mm
• Weight (without batteries): 200 g
• Charging port: Micro USB
• Bluetooth: No

Package Contents

• AC5000 Chrono
• User manual
