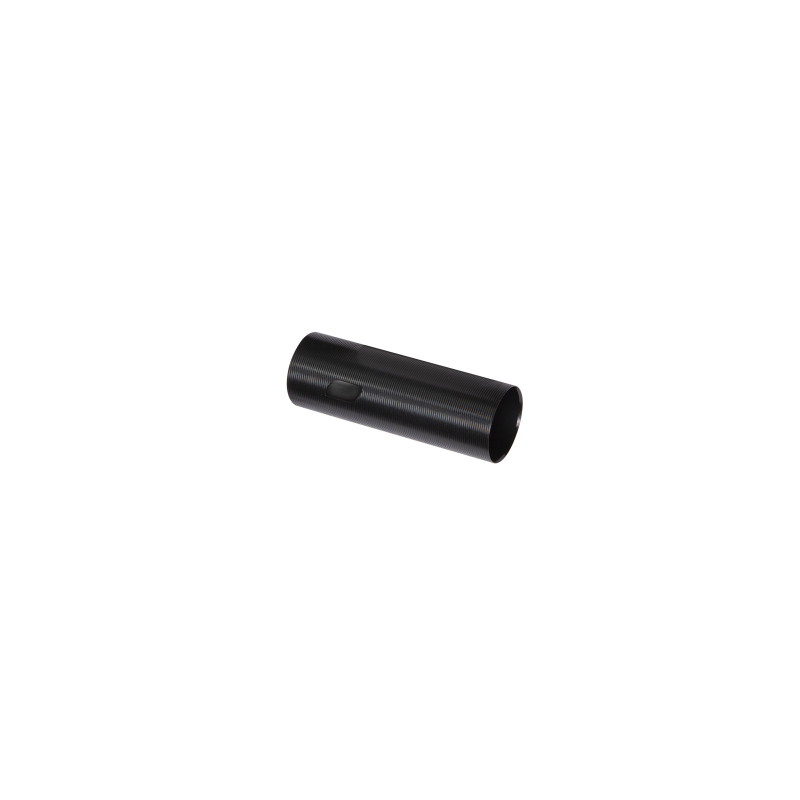

ASG ULTIMATE CNC Steel Cylinder for AEG (201-250 mm) - Black
CNC Steel Cylinder for AEG by ASG ULTIMATE in black.
Designed for inner barrels lenght of 201–250 mm.
Precision CNC-machined seamless steel cylinder.
Engineered for optimal air compression.
Isonite surface treatment for corrosion resistance and reduced friction.
External grooves enhance cooling during high-performance use.
Další varianty
On stock
On stock
On stock
On stock
By buying this product you can collect up to 2 points.
View loyalty points rules.
CNC Steel Cylinder for AEG by ASG ULTIMATE
The ULTIMATE CNC Cylinder is built for ideal air compression in AEG setups. It's made from seamless drawn 45C steel with a hardness rating of 20–25 HRC and treated with isonite oxidation for low friction and corrosion resistance. Thanks to precise CNC machining, the cylinder features a smooth inner bore and external grooves for improved heat dissipation.
ASG manufactures various cylinder types with specific hole shapes and positions depending on the inner barrel length. This ensures maximum air efficiency and optimized performance for each configuration. The cylinder has been tested for durability under high-stress use with a variety of springs. When choosing a cylinder, barrel length is key, but for accurate Volume Ratio, it's also important to consider BB weight and piston mass to avoid Joule Creep.
Key Features
- Seamless steel construction – maximum strength and dimensional stability.
- CNC-grooved exterior – enhanced cooling and weight reduction.
- Isonite surface treatment – corrosion resistance and friction reduction.
- Precision inner dimensions – better sealing and increased efficiency.
- Type marking – easy selection based on barrel length.
Barrel Length Cylinder Type Table
| Type | Inner Barrel Length | Hole Design |
|---|---|---|
| B (1/2 Hole) | 201–250 mm | ASG logo outline |
| C (3/4 Hole) | 251–300 mm | ASG logo outline |
| D (4/5 Hole) | 301–400 mm | ASG logo outline |
| E (Tip Hole) | 401–451 mm | 1/2 ASG logo outline |
| 0 (Closed) | 451 mm and above | No hole |
| A (MP5K/PDW) | 101–201 mm | Narrow longitudinal slot |
| LMG / CA25 | 451 mm and above (extended gearbox V2.5 / PSG-1 / L85) | No hole |
Technical Specifications
- For barrel length: 201–251 mm
- Material: Seamless drawn 45C steel
- Hardness: 20–25 HRC
- Surface finish: Isonite (black)
- Exterior machining: CNC grooves for heat dissipation
- Weight: 34 g
Package Contents
- ASG ULTIMATE CNC Steel Cylinder
