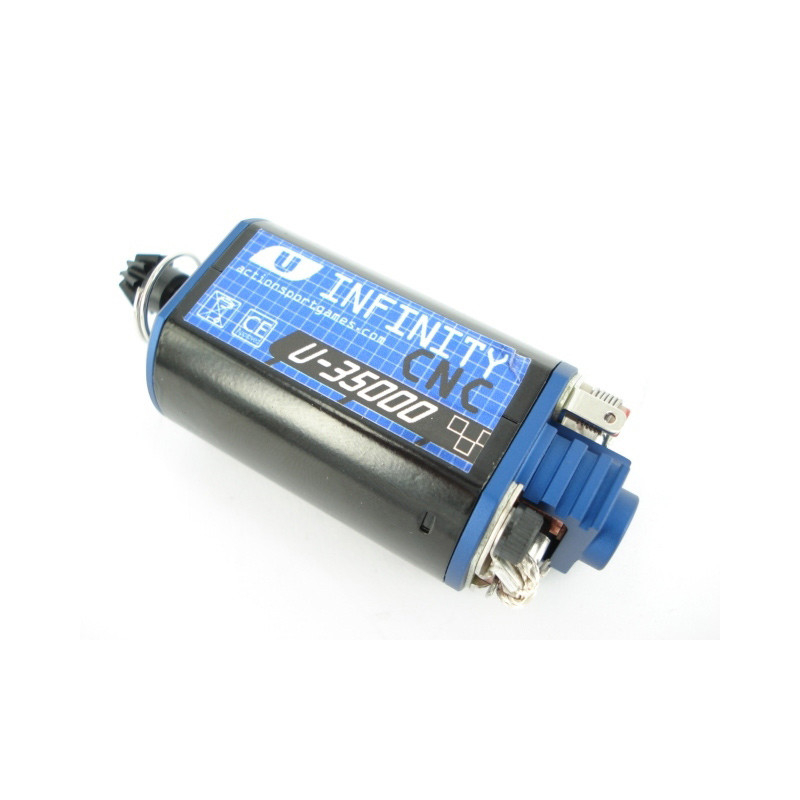

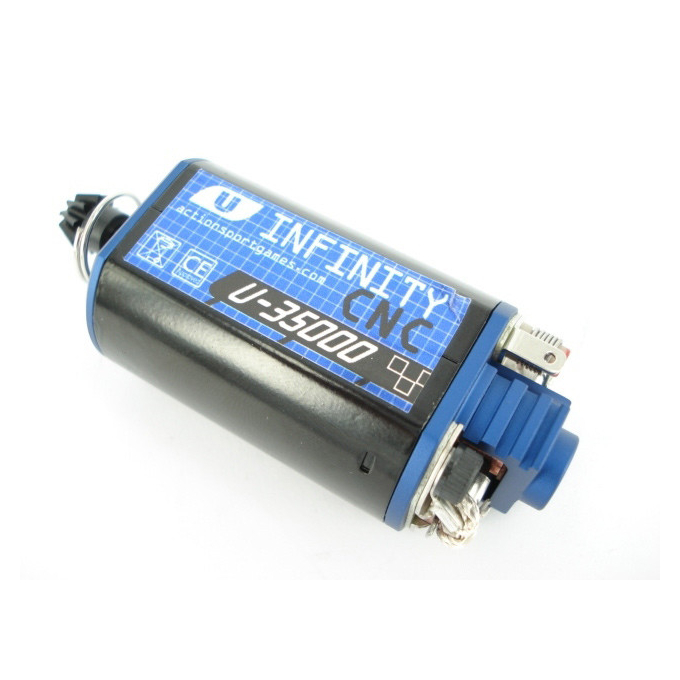

ASG ULTIMATE INFINITY CNC U-35000 Motor - Short Axis
INFINITY CNC U-35000 Upgrade Motor by ASG ULTIMATE with aluminum housing.
High performance motor with 35,000 rpm.
Short axis, ideal for AK, G36, CZ Scorpion Evo, M249 LMG and other rifles.
CNC-machined housing and end plate for long-lasting performance and top-tier durability.
Efficient cooling, carbon brushes and ball bearings.
This motor keeps going until the battery is dead.
Další varianty
On stock
On stock
On stock
On stock
By buying this product you can collect up to 16 points.
View loyalty points rules.
Accessories
9,97 € In StockASG ULTIMATE Carbon Brush Set for INFINITY CNC / BOOST Motors...: Ultimate
ULTIM093
Replacement Brushes for INFINITY CNC and BOOST motors by ASG ULTIMATE. Original spare part to restore motor performance. Set of 2 brushes for full replacement. Can theoretically be modified for use in other motors.
9,97 €In Stock
INFINITY CNC Motor by ASG ULTIMATE
The INFINITY CNC motor is designed for maximum torque and reliable performance across spring tensions. It features a CNC-machined aluminum cap, stainless steel shaft, steel pinion gear, and a high-performance rotor with heat-resistant magnets. Thanks to carbon brushes and silver-plated wiring, it delivers excellent efficiency even under long-term use.
Unlike the BOOST series, this model has a full CNC aluminum housing and base for optimal heat dissipation. Ball bearings ensure smooth shaft stabilization and operation. Naturally, it comes with a CNC steel pinion gear and wear-resistant stainless shaft.
Key Features
- Aluminum endbell – CNC-milled for precision and cooling.
- Stainless steel shaft – twist- and wear-resistant.
- Silver-plated wiring – better conductivity and reliability.
- Ball bearings – for smooth operation and shaft stability.
- Carbon brushes – longer life and minimal sparking.
- Strong magnets – high torque and stable rotation.
Motor Compatibility and Suggested Builds
| RPM | Motor Type | Ideal Spring Strength | Gear Ratios |
|---|---|---|---|
| 18,000 rpm | Extreme Torque | M170–M210 | 20:1–26.5:1 |
| 22,000 rpm | Super Torque | M140–M190 | 18.5:1–26.5:1 |
| 30,000 rpm | Torque | M120–M150 | 16:1–22:1 |
| 35,000 rpm | Torque / Speed | M110–M130 | 13:1–18:1 |
| 40,000 rpm | Speed | M90–M120 | 12:1–16.5:1 |
| 45,000 rpm | High Speed | M80–M110 | 10:1–13.5:1 |
Technical Specifications
- RPM: 35,000
- Axle Type: Short
- Length: 73 mm
- Weight: 166 g
- Body Material: CNC-machined aluminum
- End Plate Material: CNC-machined aluminum
- Version: INFINITY CNC
Package Contents
- ASG ULTIMATE INFINITY CNC Motor
